When engineering large-scale fluid transport networks, the integrity of the bolted joints dictates the overall safety and operational pressure limits of the entire facility. Serving as a premier Stainless Steel Flanges Manufacturer in India, Shubham Metals forges and precision-machines heavy-duty mechanical connection points designed specifically for extreme industrial environments. A flange is much more than a simple mating plate; it is a meticulously engineered component that must align perfectly, compress gaskets with absolute uniformity, and withstand immense internal fluid shear. By utilizing premium austenitic grades, our flanges completely neutralize the risk of localized corrosion and structural warping, preventing catastrophic system depressurization in petrochemical plants, municipal water grids, and heavy chemical refineries.
The Metallurgy and Surface Finish Engineering
Understanding the industrial lifespan of an austenitic flange requires a deep look at its chemical composition and surface machining. Stainless steel grades like 304/304L and 316/316L rely on a precise ratio of chromium (minimum 18%) and nickel (minimum 8%). This composition allows the flange to instantaneously form a self-healing chromium oxide film upon exposure to the atmosphere, rendering it highly resistant to atmospheric corrosion and oxidizing media. The 316L variant includes added molybdenum, drastically improving its resistance to chloride-induced pitting in marine and coastal applications.
Equally critical is the machining of the flange face. When bolting two flanges together, the mating surfaces must grip the gasket perfectly. Our CNC machining centers cut exact phonographic serrations into the Raised Face (RF) or Flat Face (FF) of the flange, strictly adhering to the 125–250 micro-inch AARH (Arithmetic Average Roughness Height) standard. This precise surface roughness ensures the gasket material compresses into the microscopic grooves, forming an impenetrable, leak-proof seal under intense Class 1500# or Class 2500# pressures.
Eradicating Supply Bottlenecks via a Dedicated Stainless Steel Flanges Supplier in Bangalore
In heavy industrial sectors, waiting weeks for critical piping components can halt entire facility expansions and hemorrhage capital. To actively mitigate this, we operate as a highly responsive Stainless Steel Flanges Supplier in Bangalore. Our logistics network is built on a massive, dynamic inventory of forged steel blanks and finished flanges across all standard schedules and pressure classes. Whether your maintenance crew requires immediate delivery of Slip-On flanges for a low-pressure water line repair, or massive 24-inch Weld Neck flanges for a critical crude oil manifold, our supply chain ensures rapid, predictable fulfillment without sacrificing metallurgical quality.

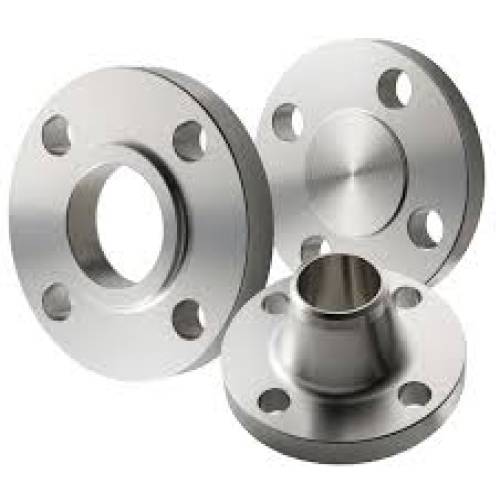

Primary Flange Configurations
Depending on the mechanical stress and fluid dynamics of the system, we fabricate several distinct variations:
- Weld Neck (WNRF): Features a tapered hub that transfers stress directly to the pipe, ideal for high-pressure, high-vibration systems.
- Slip-On (SORF): Slides directly over the pipe and is fillet-welded inside and out; excellent for lower pressure routing.
- Blind (BLRF): A solid forging used to terminate the end of a piping system or isolate a valve, capable of handling immense internal pressure.
- Lap Joint: Used in conjunction with stub ends; ideal for systems requiring frequent dismantling for inspection.
- Socket Weld & Threaded: Engineered specifically for small-bore, high-pressure lines where internal welding is impossible.
Dimensional and Material Specifications
Our production parameters strictly align with global piping codes to facilitate flawless international integration.
|
Parameter |
Specification Details |
|
Design Standards |
ASME B16.5, ASME B16.47 (Series A & B), DIN, EN 1092-1 |
|
Material Grades |
ASTM A182 F304, F304L, F316, F316L, F321, F347 |
|
Pressure Classes |
Class 150, 300, 600, 900, 1500, 2500 |
|
Facing Types |
Raised Face (RF), Flat Face (FF), Ring Type Joint (RTJ) |
|
Size Range |
1/2” NB to 48” NB (Custom large-diameter forgings available) |
|
Testing Regimens |
Ultrasonic Flaw Detection, PMI, Dye Penetrant (LPT) |
Driving B2B Procurement via an Authorized Stainless Steel Flanges Dealer in Bangalore
For EPC contractors executing massive greenfield projects, managing the procurement of thousands of individual piping components is a severe logistical challenge. By partnering with us as your dedicated Stainless Steel Flanges Dealer in Bangalore, you gain a massive commercial advantage. We provide heavily discounted bulk pricing structures, comprehensive MTC 3.1 certification, and highly customized packaging to prevent flange face damage during transit. Furthermore, we actively assist procurement engineers in specifying the exact bolt-hole alignments and pressure classes required for their complex isometric drawings.
Fulfilling Global Contracts as a Top Stainless Steel Flanges Exporter from Bangalore
Our commitment to machining excellence and zero-defect forging has driven massive international demand. Functioning as a globally recognized Stainless Steel Flanges Exporter from Bangalore, we consistently route heavy-duty connection components to desalination plants in the Middle East, pharmaceutical facilities in Europe, and chemical refineries across Southeast Asia. Every export shipment undergoes strict dimensional gauging, 100% positive material identification, and ultrasonic testing. We utilize export-grade seaworthy wooden crating with specialized plastic face protectors to guarantee that foreign clients receive impeccable, installation-ready flanges.
Technical Specifications
| Stainless Steel Flanges – Technical Specifications | |
|---|---|
| Size Range | 1/2" to 60" (DN 15 to DN 1500) |
| Pressure Class | 150 / 300 / 600 / 900 / 1500 / 2500 LBS, PN 6 to PN 100 |
| Type | Weld Neck, Slip-On, Socket Weld, Blind, Lap Joint, Threaded, Reducing, Orifice, Spectacle Blind |
| Face Type | RF, FF, RTJ, T&G, Male & Female |
| Standards | ASME B16.5, B16.47 Series A/B, DIN, EN 1092-1, BS 4504, JIS B2220 |
| Manufacturing | Forged / Plate-cut |
| Testing | Hydrostatic, PMI, Hardness, IGC, Ultrasonic, Dye Penetrant |
| Certification | EN 10204 3.1 / 3.2 Mill Test Certificate |
